Catalog #

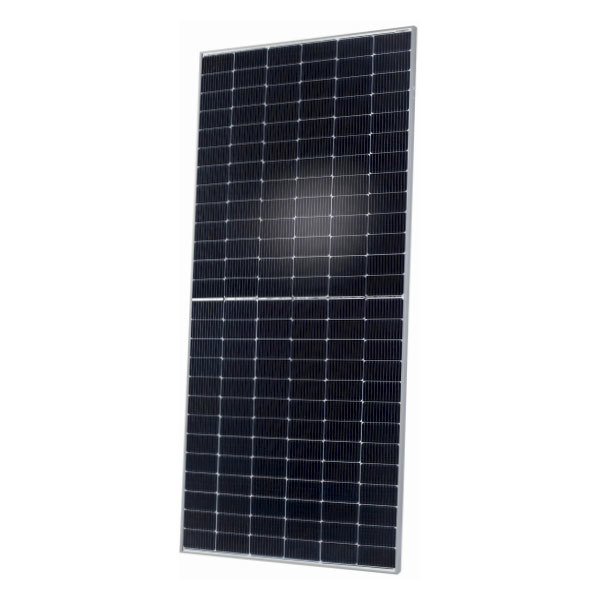

Q.TRON XL-G2.3/BFG 635
Mfr. Part #
Q.TRON XL-G2.3/BFG 635
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
480
Watts STC
635 W
Cells
156
Technology
Monocrystalline
Open Circuit Voltage (Voc)
57.74
Short Circuit Current (Isc)
15.44
Max Power Voltage (Vmpp)
48.09
Max Power Current (Impp)
14.62
Max Current
30 A
Efficiency
22.7
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
0.08in (2.0 mm) semi-tempered glass
Connector
Staubli MC4-Evo2, Staubli MC4
Output Cables
4mm2 Solar cable
Temp Coefficient (Pmpp)
-0.30
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 29
General Information
Dimensions
2462 L x 1134 W x 35 H mm
Weight
77.8 Lbs.
Series
Q.Tron XL-G2
Approvals
UL 61730
CE-compliant
IEC 61215:2016
IEC 61730:2016
